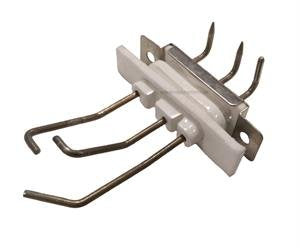

Navien 30026265A - Flame Rod Assembly - Stainless and Ceramic for NPE and NCB Series
The Navien 30026265A Flame Rod Assembly is a critical OEM safety component designed for use in Navien NPE and NCB series tankless water heaters. This part detects the presence of a flame in the combustion chamber and signals the gas valve to remain open when ignition is successful. If no flame is detected, it safely shuts off the gas to prevent hazards.
Constructed from durable stainless steel and ceramic, the flame rod offers reliable thermal conductivity and long service life. Regular inspection and cleaning are recommended to maintain consistent ignition and system safety.
Specifications:
- Product Type: Flame rod assembly
- Function: Flame detection and safety shutoff control
- Material: Stainless steel and ceramic
- Part Number: 30026265A
- Dimensions: Approx. 2.95" x 2.91" x 2.64"
- Weight: 2.08 oz
Applications:
- Compatible with Navien NPE and NCB series models including NPE-240A, NPE-210, NCB-180, NCB-210, and NCB-240
